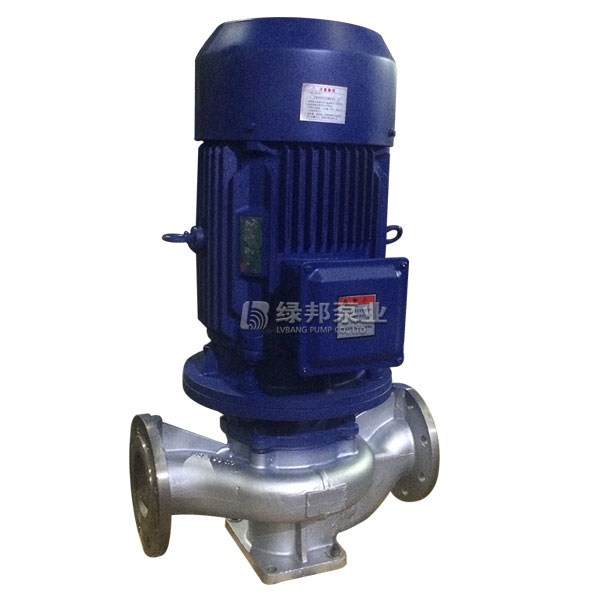

ISG型不銹立式管道泵
ISG型不銹立式管道泵
是本單位科技人員聯合國內水泵專家選用國內優秀水力模型，采用IS型離心泵之性能參數，在一般立式泵的基礎上進行巧妙組合設計而成，同時根據使用溫度、介質等不同在ALG型基礎上派生出適用熱水泵、高溫耐腐蝕化工泵、油泵。
下一個產品：PBG屏蔽式管道泵
上一個產品：CQB-L型立式磁力管道離心泵
ISG型不銹立式管道泵產品概述：
ISG型系列單級單吸管道離心泵，是本單位科技人員聯合國內水泵專家選用國內優秀水力模型，采用IS型離心泵之性能參數，在一般立式泵的基礎上進行巧妙組合設計而成，同時根據使用溫度、介質等不同在ALG型基礎上派生出適用熱水泵、高溫耐腐蝕化工泵、油泵。該系列產品具有高效節能、噪音低、性能可靠等優點，符合新國家機械部JB/T53058-93的標準要求，產品按國際ISO2858標準設計制造。
ISG型不銹立式管道泵主要用途:
1. ISG型立式管道離心泵，供輸送清水及物理化學性質類似于清水的其他液體之用，適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套，使用溫度T＜80℃。
2. IRG型立式熱水泵適用于冶金、化工、紡織、木材加工、造紙以及飯店、浴室、賓館等鍋爐高溫?zé)崴鰤貉h(huán)輸送以及城市住房采暖循環用泵，使用溫度120℃以下。
3. GRG型立式高溫離心泵廣泛用于：能源、冶金、化工、紡織、造紙以及飯店、浴室、賓館等鍋爐高溫?zé)崴鰤貉h(huán)輸送以及城市住房采暖循環用泵，使用溫度240℃以下。
4. IHG型立式管道化工泵，供輸送不含固體顆粒，具有腐蝕性，粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門，使用溫度為-20℃ ~ 120℃。
5. YG立式管道油泵，供輸送汽油、煤油、柴油等石油產品，被輸送介質溫度為-20℃ ~ + 120℃。
6. IHGB型立式不銹鋼防爆型化工離心泵，適用于輸送易燃性化工液體。
7. ISGD、IRGD、GRGD、IHGH、YGD、IHGBD型立式低速離心泵，適用于環境噪聲要求很低的場合及空調循環等。
ISG型不銹立式管道泵工作條件：
1.吸入壓力≤1.0MPa，或泵系統高工作壓力≤1.6MPa，即吸入口壓力+泵揚程≤1.6MPa、泵靜壓試驗壓力為≤2.5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6MPa時應在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2.環境溫度＜40℃，相對濕度＜40%。
3.所輸送介質中固體顆粒體積含量不超過單位體積的0.1，粒度＜0.2mm。
注：如果用介質為帶有細小顆粒，請?jiān)谟嗀洉r(shí)說明，以便廠家采用耐磨式機械密封。
ISG型不銹立式管道泵產品特點：
1. 泵為立式結構，進出口口徑相同，且位于同一中心線上，可象閥門一樣安裝于管路之中，外形緊湊美觀，占地面積小，建筑投入低，如加上防護罩則可置于戶外使用。
2. 葉輪直接安裝在電機的長軸上，軸向尺寸短，結構緊湊，泵與電機軸承配置合理，能有效地平衡泵運轉產生的徑向和軸向負荷，從而保證了泵的運行平穩，振動小、噪音低。
3. 軸封采用機械密封或機械密封組合，采用進口鈦合金密封環、中型耐高溫機械密封和采用硬質合金材料，耐磨密封，能有效地延長機械密封的使用壽命。
4. 安裝檢修方便，無需拆動管路系統，只要卸下泵聯體座螺母即可抽出全部轉子部件。
5. 可根據使用要求即流量和揚程的需要采用泵的串、并聯運用方式。
6. 可根據管路布置的要求采用泵的豎式和橫式安裝。
ISG型不銹立式管道泵性能參數
| 型 號 | 流量 |
揚程 (m) |
效率 (%) |
轉速 (r/min) |
電機功率 (kw) |
汔蝕余量 (NPSH)r |
重量 (kg) |
|
| m3/h | L/s | |||||||
| 15-80 |
1.1 1.5 2.0 |
0.3 0.42 0.55 |
8.5 8 7 |
26 34 34 |
2800 | 0.18 | 2.3 | 17 |
| 20-110 |
1.8 2.5 3.3 |
0.5 0.69 0.91 |
16 15 13.5 |
25 34 35 |
2800 | 0.37 | 2.3 | 25 |
| 20-160 |
1.8 2.5 3.3 |
0.5 0.69 0.91 |
33 32 30 |
19 25 23 |
2900 | 0.75 | 2.3 | 29 |
| 25-110 |
2.8 4 5.2 |
0.78 1.11 1.44 |
16 15 13.5 |
34 42 41 |
2900 | 0.55 | 2.3 | 26 |
| 25-125 |
2.8 4 5.2 |
0.78 1.11 1.44 |
20.6 20 18 |
28 36 35 |
2900 | 0.75 | 2.3 | 28 |
| 25-125A |
2.5 3.6 4.6 |
0.69 1.0 1.28 |
17 16 14.4 |
35 | 2900 | 0.55 | 2.3 | 27 |
| 25-160 |
2.8 4 5.2 |
0.78 1.11 1.44 |
33 32 30 |
24 32 33 |
2900 | 1.5 | 2.3 | 39 |
| 25-160A |
2.6 3.7 4.9 |
0.12 1.03 1.36 |
29 28 26 |
31 | 2900 | 1.1 | 2.3 | 34 |
| 32-100 | 4.5 | 12.5 | 12.5 | 44 | 2900 | 0.55 | 2.0 | 27 |
| 32-100(I) |
4.4 6.3 8.3 |
1.22 1.75 2.32 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.75 | 2.0 | 32 |
| 32-125 |
3.5 5 6.5 |
0.97 1.39 1.8 |
22 20 18 |
40 44 42 |
2900 | 0.75 | 2.3 | 28 |
| 32-125A |
3.1 4.5 5.8 |
0.86 1.25 1.61 |
17.6 16 14.4 |
43 | 2900 | 0.55 | 2.3 | 28 |
| 32-160 | 6.5 | 5 | 32 | 44 | 2900 | 1.5 | 2.3 | 39 |
| 32-160A | 4 | 1.1 | 25 | 34 | 2900 | 1.1 | 2.0 | 38 |
| 32-160(I) |
4.4 6.3 8.3 |
1.22 1.75 2.32 |
33.2 32 30.2 |
34 40 42 |
2900 | 2.2 | 2.0 | 4.7 |
| 32-200 | 4.5 | 12.5 | 50 | 32 | 2900 | 3 | 2.0 | 55 |
| 32-200(I) |
4.4 6.3 8.3 |
1.22 1.75 2.32 |
50.5 50 48 |
26 33 35 |
2900 | 4 | 2.0 | 43 |
| 32-200A |
2.8 4 5.2 |
0.78 1.11 1.44 |
44.6 44 42.7 |
34 40 42 |
2900 | 2.2 | 2.0 | 74 |
| 40-100 |
4.4 6.3 8.3 |
1.22 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.55 | 2.3 | 32 |
| 40-100A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
10.6 10 9 |
52 | 2900 | 0.37 | 2.3 | 32 |
| 40-125 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
41 46 43 |
2900 | 1.1 | 2.3 | 34 |
| 40-125A |
3.9 5.6 7.4 |
1.08 1.56 2.06 |
17.6 16 14.4 |
40 45 41 |
2900 | 0.75 | 2.3 | 33 |
| 40-160 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
33 32 30 |
35 40 40 |
2900 | 2.2 | 2.3 | 47 |
| 40-160A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
29 28 26.3 |
34 39 39 |
2900 | 1.5 | 2.3 | 43 |
| 40-160B |
3.8 5.5 7.2 |
1.06 1.53 2.0 |
25.5 24 22.5 |
34 38 37 |
2900 | 1.1 | 2.3 | 38 |
| 40-200 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
51 50 48 |
26 33 32 |
2900 | 4.0 | 2.3 | 74 |
| 40-200A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
45 44 42 |
26 31 30 |
2900 | 3.0 | 2.3 | 62 |
| 40-200B |
3.7 5.3 7.0 |
1.03 1.47 1.94 |
38 36 34.5 |
29 | 2900 | 2.2 | 2.3 | 52 |
| 40-250 |
4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 28 28 |
2900 | 7.5 | 2.3 | 105 |
| 40-250A |
4.1 5.9 7.8 |
1.14 1.64 2.17 |
72 70 65 |
24 28 27 |
2900 | 5.5 | 2.3 | 98 |
| 40-250B |
3.8 5.5 7.0 |
1.06 1.53 1.94 |
61.5 60 56 |
23 27 26 |
2900 | 4.0 | 2.3 | 77 |
| 40-100(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 34 |
| 40-100(I)A |
8 11 14.5 |
2.22 3.05 4.03 |
10.6 10 9 |
60 | 2900 | 0.75 | 2.3 | 32 |
| 40-125(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.2 20 17.8 |
49 58 57 |
2900 | 1.5 | 2.3 | 38 |
| 40-125(I)A |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 | 2.3 | 33 |
| 40-160(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3.0 | 2.3 | 56 |
| 40-160(I)A |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 47 |
| 40-160(I)B |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 | 2900 | 1.5 | 2.3 | 43 |
| 40-200(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
51.2 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 85 |
| 40-200(I)A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.0 44 42 |
37 45 45 |
2900 | 4.0 | 2.3 | 75 |
| 40-200(I)B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
44 | 2900 | 3 | 2.3 | 63 |
| 40-250(I) |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.2 80 77.5 |
31 38 40 |
2900 | 11 | 2.3 | 145 |
| 40-250(I)A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.0 70 68 |
38 | 2900 | 7.5 | 2.3 | 95 |
| 40-250(I)B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 | 2900 | 5.5 | 2.3 | 94 |
| 40-250(I)C |
7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
36 | 2900 | 5.5 | 2.3 | 88 |
| 50-100 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 | 1.1 | 2.3 | 36 |
| 50-100A |
8 11 14.5 |
2.22 3.05 4.03 |
11 10 9 |
60 | 2900 | 0.75 | 2.3 | 35 |
| 50-125 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.5 20 17.8 |
49 58 57 |
2900 | 1.5 | 2.3 | 43 |
| 50-125A |
8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 | 2.3 | 38 |
| 50-160 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 30 |
2900 | 3.0 | 2.3 | 59 |
| 50-160A |
8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 | 2.3 | 51 |
| 50-160B |
7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 | 2900 | 1.5 | 2.3 | 47 |
| 50-200 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
52 50 48 |
38 46 46 |
2900 | 5.5 | 2.3 | 101 |
| 50-200A |
8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.8 44 42 |
37 45 45 |
2900 | 4.0 | 2.3 | 80 |
| 50-200B |
7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
44 | 2900 | 3 | 2.3 | 68 |
| 50-250 |
8.8 12.5 16.3 |
2.44 3.47 4.53 |
82 80 77.5 |
29 38 40 |
2900 | 11 | 2.3 | 160 |
| 50-250A |
8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.5 70 68 |
38 | 2900 | 7.5 | 2.3 | 115 |
| 50-250B |
7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 | 2900 | 5.5 | 2.3 | 114 |
| 50-250C |
7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
36 | 2900 | 5.5 | 2.3 | 108 |
| 50-100(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 | 2.5 | 41 |
| 50-100(I)A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 36 |
| 50-125(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3.0 | 2.5 | 56 |
| 50-125(I)A |
15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 13.6 |
58 66 65 |
2900 | 2.2 | 2.5 | 48 |
| 型 號 | 流量 |
揚程 (m) |
效率 (%) |
轉速 (r/min) |
電機功率 (kw) |
汔蝕余量 (NPSH)r |
重量 (kg) |
|
| m3/h | L/s | |||||||
| 50-160(I) |
17.5 25 32.5 |
4.68 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4.0 | 2.5 | 72 |
| 50-160(I)A |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 3.0 | 2.5 | 71 |
| 50-160(I)B |
15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
58 | 2900 | 2.2 | 2.5 | 59 |
| 50-200(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 108 |
| 50-200(I)A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 5.5 | 2.5 | 107 |
| 50-200(I)B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
55 | 2900 | 4 | 2.5 | 100 |
| 50-250(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15.0 | 2.5 | 175 |
| 50-250(I)A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11.0 | 2.5 | 165 |
| 50-250(I)B |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 | 7.5 | 2.5 | 165 |
| 50-315(I) |
17.5 25 32.5 |
4.86 6.94 9.03 |
128 125 122 |
30 40 44 |
2900 | 30.0 | 2.5 | 310 |
| 50-315(I)A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
30 40 44 |
2900 | 22 | 2.5 | 245 |
| 50-315(I)B |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 | 2.5 | 215 |
| 50-315(I)C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15.0 | 2.5 | 195 |
| 65-100 |
17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 |
2900 | 1.5 | 2.5 | 46 |
| 65-100A |
15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 | 2.5 | 41 |
| 65-125 |
17.5 25 32.5 |
4.86 6.94 9.03 |
21.6 20 18 |
60 68 67 |
2900 | 3 | 2.5 | 58 |
| 65-125A |
15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 14.4 |
58 66 65 |
2900 | 2.2 | 2.5 | 49 |
| 65-160 |
17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4.0 | 2.5 | 75 |
| 65-160A |
16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 3 | 2.5 | 75 |
| 65-160B |
15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
58 | 2900 | 2.2 | 2.5 | 63 |
| 65-200 |
17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 | 2.5 | 107 |
| 65-200A |
16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 5.5 | 2.5 | 107 |
| 65-200B |
15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
55 | 2900 | 4 | 2.5 | 100 |
| 65-250 |
17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15 | 2.5 | 180 |
| 65-250A |
16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11 | 2.5 | 170 |
| 65-250B |
15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 | 7.5 | 2.5 | 170 |
| 65-315 |
17.5 25 32.5 |
4.86 6.94 9.03 |
127 125 122 |
32 40 44 |
2900 | 30 | 2.5 | 320 |
| 65-315A |
16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
32 40 44 |
2900 | 22 | 2.5 | 255 |
| 65-315B |
15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 | 2.5 | 225 |
| 65-315C |
14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15 | 2.5 | 205 |
| 65-100(I) |
35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3 | 3.0 | 63 |
| 65-100(I)A |
31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 53 |
| 65-125(I) |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 99 |
| 65-125(I)A |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4 | 3.0 | 78 |
| 65-160(I) |
35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 103 |
| 65-160(I)A |
32.7 46.7 61 |
9.1 13 16.9 |
30.6 28 24 |
62 70 69 |
2900 | 5.5 | 3.0 | 103 |
| 65-160(I)B |
30.3 43.3 56.3 |
8.4 |
26 24 21 |
69 | 2900 | 4 | 3.0 | 97 |
| 65-200(I) |
35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15 | 3.0 | 176 |
| 65-200(I)A |
32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11 | 3.0 | 166 |
| 65-200(I)B |
30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 | 2900 | 7.5 | 3.0 | 114 |
| 65-250(I) |
35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22 | 3.0 | 235 |
| 65-250(I)A |
32.5 46.7 61 |
9.0 |
73 70 63 |
52 59 60 |
2900 | 18.5 | 3.0 | 205 |
| 65-250(I)B |
30 43.3 56 |
8.3 12 15.6 |
62 60 54 |
58 | 2900 | 15 | 3.0 | 180 |
| 65-315(I) |
35 50 65 |
9.72 13.9 18.1 |
128 125 121 |
44 54 57 |
2900 | 37 | 3.0 | 350 |
| 65-315(I)A |
32.5 46.5 60.5 |
9.0 12.9 16.8 |
112.6 110 106.4 |
43 54 57 |
2900 | 30 | 3.0 | 335 |
| 65-315(I)B |
31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
53 | 2900 | 30 | 3.0 | 335 |
| 65-315(I)C |
29 41 53.6 |
8.1 11.4 14.9 |
87 85 83 |
51 | 2900 | 22 | 3.0 | 270 |
| 80-100 |
35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3 | 3.0 | 63 |
| 80-100A |
31.3 44.7 58 |
8.7 12.5 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 | 3.0 | 54 |
| 80-125 |
35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 | 3.0 | 99 |
| 80-125A |
31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4 | 3.0 | 79 |
| 型 號 | 流量 |
揚程 (m) |
效率 (%) |
轉速 (r/min) |
電機功率 (kw) |
汔蝕余量 (NPSH)r |
重量 (kg) |
|
| m3/h | L/s | |||||||
| 80-160 |
35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 | 3.0 | 105 |
| 80-160A |
32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 24 |
62 70 69 |
2900 | 5.5 | 3.0 | 105 |
| 80-160B |
30.3 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
69 | 2900 | 4 | 3.0 | 98 |
| 80-200 |
35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15 | 3.0 | 175 |
| 80-200A |
32.8 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11 | 3.0 | 165 |
| 80-200B |
30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 | 2900 | 7.5 | 3.0 | 115 |
| 80-250 |
35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22 | 3.0 | 240 |
| 80-250A |
32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 63 |
52 59 60 |
2900 | 18.5 | 3.0 | 210 |
| 80-250B |
30 43.3 56 |
8.3 12.0 15.6 |
62 60 54 |
58 | 2900 | 15 | 3.0 | 185 |
| 80-315 |
35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
43 54 57 |
2900 | 37 | 3.0 | 355 |
| 80-315A |
32.5 46.5 60.5 |
9.0 12.9 16.8 |
112.6 110 107.4 |
43 54 57 |
2900 | 30 | 3.0 | 340 |
| 80-315B |
31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
53 | 2900 | 30 | 3.0 | 340 |
| 80-315C |
29 41 53.6 |
8.1 11.4 14.9 |
98 85 83 |
51 | 2900 | 22 | 3.0 | 275 |
| 80-350 |
35 50 65 |
9.72 13.9 18.1 |
146 150 142 |
55 66 67 |
2900 | 55 | 3.0 | 570 |
| 80-350A |
31 44.5 58 |
8.6 12.4 16.1 |
138.4 142 134.8 |
65 | 2900 | 45 | 3.0 | 470 |
| 80-350B |
29 41 53.6 |
8.1 11.4 14.9 |
131.4 135 127.8 |
63 | 2900 | 37 | 3.0 | 440 |
| 80-100(I) |
70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 | 4.5 | 108 |
| 80-100(I)A |
62.6 89 116 |
17.4 24.7 32.2 |
11 10 8.8 |
64 74 74 |
2900 | 4 | 4.5 | 87 |
| 80-125(I) |
70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 | 11 | 4.5 | 163 |
| 80-125(I)A |
62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 65 |
2900 | 7.5 | 4.5 | 113 |
| 80-160(I) |
70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 | 15 | 4.5 | 184 |
| 80-160(I)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 | 11 | 4.5 | 174 |
| 80-160(I)B |
60.6 86.6 112.5 |
16.8 24.1 31.3 |
72 24 18 |
72 | 2900 | 7.5 | 4.5 | 174 |
| 80-200(I) |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 | 22 | 4.0 | 251 |
| 80-200(I)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
67 73 72 |
2900 | 18.5 | 4.0 | 220 |
| 80-200(I)B |
61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
71 | 2900 | 15 | 4.0 | 198 |
| 80-250(I) |
70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 | 37 | 4.0 | 330 |
| 80-250(I)A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 | 30 | 4.0 | 315 |
| 80-250(I)B |
61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
66 | 2900 | 22 | 4.0 | 315 |
| 80-315(I) |
70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 | 75 | 4.0 | 675 |
| 80-315(I)A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 103 |
55 66 67 |
2900 | 55 | 4.0 | 535 |
| 80-315(I)B |
63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
65 | 2900 | 45 | 4.0 | 420 |
| 80-315(I)C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
63 | 2900 | 37 | 4.0 | 366 |
| 100-100 |
70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 | 4.5 | 113 |
| 100-100A |
62.6 89 116 |
17.4 47 32.2 |
11 10 8.8 |
64 74 74 |
2900 | 4 | 4.5 | 91 |
| 100-125 |
70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 | 11 | 4.5 | 169 |
| 100-125A |
62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 63 |
2900 | 7.5 | 4.5 | 118 |
| 100-160 |
70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 | 15 | 4.5 | 191 |
| 100-160A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 | 11 | 4.5 | 181 |
| 100-160B |
60.6 86.6 112.5 |
16.8 24.1 31.3 |
27 24 18 |
72 | 2900 | 7.5 | 4.5 | 181 |
| 100-200 |
70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 | 22 | 4.0 | 245 |
| 100-200A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
64 73 72 |
2900 | 18.5 | 4.0 | 215 |
| 100-200B |
61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
71 | 2900 | 15 | 4.0 | 193 |
| 100-250 |
70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 | 37 | 4.0 | 345 |
| 100-250A |
65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 | 30 | 4.0 | 330 |
| 100-250B |
61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
66 | 2900 | 33 | 4.0 | 330 |
| 100-315 |
70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 | 75 | 4.0 | 689 |
| 100-315A |
66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 103 |
65 66 67 |
2900 | 55 | 4.0 | 549 |
| 100-315B |
63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
65 | 2900 | 45 | 4.0 | 439 |
| 100-315C |
58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
63 | 2900 | 37 | 4.0 | 385 |
| 100-100(I) |
96 160 192 |
26.7 44.4 53.3 |
14 12.5 10 |
64 73 70 |
2900 | 11 | 4.5 | 115 |
| 100-125(I) |
96 160 192 |
26.7 44.4 53.3 |
24 20 14 |
62 74 69 |
2900 | 15 | 4.5 | 168 |
| 100-125(I)A |
84 140 168 |
23.3 39 46.7 |
20 17 12 |
64 72 68 |
2900 | 11 | 4.5 | 168 |
| 100-160(I) |
96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
69 79 75 |
2900 | 22 | 5.6 | 210 |
| 100-160(I)A |
84 140 168 |
23.3 39 46.7 |
32 28 23.5 |
66 76 72 |
2900 | 18.5 | 5.0 | 210 |
| 100-200(I) |
96 160 192 |
26.7 44.4 53.3 |
53 50 45 |
69 79 78 |
2900 | 37 | 5.2 | 402 |
| 100-200(I)A |
84 140 168 |
23.3 39 46.7 |
48 45 40 |
64 74 73 |
2900 | 30 | 4.5 | 395 |
| 100-200(I)B |
60 100 120 |
16.7 |
43 |
72 | 2900 | 22 | 4.5 | 360 |
| 100-250(I) |
96 160 192 |
26.7 44.4 53.3 |
83 80 72 |
65 77 74 |
2900 | 55 | 4.8 | 560 |
| 100-250(I)A |
84 140 168 |
23.3 39 46.7 |
75 72 65 |
60 72 69 |
2900 | 45 | 4.5 | 420 |
| 100-250(I)B |
60 100 120 |
16.7 27.8 33.3 |
68 65 58 |
70 | 2900 | 37 | 4.5 | 400 |
| 100-350 |
60 100 120 |
16.7 27.8 33.3 |
153.6 150 142 |
72 57 74 |
2900 | 90 | 4.0 | 950 |
| 100-350A |
61 87 113 |
16.9 24.2 31.4 |
145.6 142 134 |
75 | 2900 | 75 | 4.0 | 830 |
| 型 號 | 流量 |
揚程 (m) |
效率 (%) |
轉速 (r/min) |
電機功率 (kw) |
汔蝕余量 (NPSH)r |
重量 (kg) |
|
| m3/h | L/s | |||||||
| 100-350B |
58 82 107 |
16.1 22.8 29.7 |
138.6 135 127 |
75 | 2900 | 55 | 4.0 | 600 |
| 125-100 |
96 160 192 |
26.7 44.4 53.3 |
13 12.5 12 |
82 | 2900 | 11 | 4.0 | 180 |
| 125-100A |
86 143 172 |
23.9 39.7 47.8 |
10.4 10 9.6 |
77 | 2900 | 7.5 | 4.0 | 125 |
| 125-125 |
96 160 192 |
26.7 44.4 53.3 |
22.6 20 17 |
80 | 2900 | 15 | 4.0 | 220 |
| 125-125A |
86 143 172 |
23.9 39.7 47.8 |
18 16 13.6 |
77 | 2900 | 11 | 4.0 | 210 |
| 125-160 |
96 160 192 |
26.7 44.4 53.3 |
36 32 28 |
78 | 2900 | 22 | 4.0 | 265 |
| 125-160A |
90 150 180 |
25 41.7 50 |
31.5 28 24.5 |
76 | 2900 | 18.5 | 4.0 | 230 |
| 125-160B |
83 138 166 |
21.7 38.3 46.1 |
27 24 21 |
73 | 2900 | 15 | 4.0 | 215 |
| 125-200 |
96 160 192 |
26.7 44.4 53.3 |
55 50 46 |
77 | 2900 | 37 | 5.5 | 395 |
| 125-200A |
90 150 180 |
25 41.7 50 |
48.4 44 40.5 |
76 | 2900 | 30 | 5.5 | 380 |
| 125-200B |
83 138 166 |
21.7 38.3 46.1 |
41.3 37.5 34.5 |
75 | 2900 | 22 | 5.5 | 320 |
| 125-250 |
96 160 192 |
26.7 44.4 53.3 |
87 80 73 |
75 | 2900 | 55 | 5.0 | 580 |
| 125-250A |
90 150 180 |
25 41.7 50 |
76 70 84 |
74 | 2900 | 45 | 5.5 | 490 |
| 125-250B |
83 138 166 |
21.7 38.3 46.1 |
65 60 55 |
73 | 2900 | 37 | 5.5 | 430 |
| 125-315 |
96 160 192 |
26.7 44.7 53.3 |
133 125 119 |
70 | 2900 | 90 | 5.0 | 790 |
| 125-315A |
90 150 180 |
25 41.7 50 |
117 110 104.6 |
70 | 2900 | 75 | 5.0 | 710 |
| 125-315B |
86 143 172 |
23.9 39.7 47.8 |
106.4 100 95.2 |
69 | 2900 | 75 | 5.0 | 705 |
| 125-315C |
80.5 134 161 |
22.4 37.2 44.7 |
96 88 86 |
67 | 2900 | 55 | 5.0 | 585 |
| 150-125 |
96 160 192 |
26.7 44.4 53.3 |
22.6 24 17 |
66 76 76 |
2900 | 11 | 4.0 | 210 |
| 150-125A |
90 150 180 |
25 41.7 50 |
18 16 13.6 |
77 | 2900 | 7.5 | 4.0 | 130 |
| 150-160 |
96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
75 | 2900 | 22 | 4.0 | 270 |
| 150-160A |
90 150 180 |
25 41.7 50 |
32 28 23.5 |
76 | 2900 | 18.5 | 4.0 | 230 |
| 150-160B |
84 140 168 |
23.3 39 46.7 |
27 24 21 |
73 | 2900 | 15 | 4.0 | 220 |
| 150-200 |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15 | 3.0 | 265 |
| 150-200A |
125 176 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 | 11 | 3.0 | 244 |
| 150-200B |
84 140 168 |
23.3 39 46.7 |
41 38 34 |
75 | 2900 | 22 | 4.0 | 275 |
| 150-250 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 | 3.0 | 300 |
| 150-250A |
129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15 | 3.0 | 262 |
| 150-250B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
76 | 1450 | 11 | 3.0 | 241 |
| 150-315 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 73 |
1450 | 30 | 2.5 | 410 |
| 150-315A |
131 187 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 | 22 | 3.5 | 335 |
| 150-315B |
121 173 225 |
33.5 48.1 62.5 |
25 24 21 |
76 | 1450 | 18.5 | 3.5 | 315 |
| 150-350 |
96 160 192 |
26.7 44.4 53.3 |
153.6 150 142.8 |
80 | 2900 | 110 | 5.5 | 970 |
| 150-350A |
90 150 180 |
25 41.7 50 |
145.6 142 134.8 |
70 | 2900 | 90 | 5.2 | 790 |
| 150-350B |
84 140 168 |
23.3 39 46.7 |
138.8 |
65 76 74 |
2900 | 75 | 5.5 | 705 |
| 150-400 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45 | 3.5 | 490 |
| 150-400A |
131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37 | 3.5 | 454 |
| 150-400B |
122 174 226.5 |
33.9 48.3 62.9 |
40 38 33 |
73 | 1450 | 30 | 3.5 | 435 |
| 150-400C |
112 160 208 |
31.1 44.4 57.8 |
34 32 28 |
71 | 1450 | 22 | 3.5 | 365 |
| 150-250(I) |
120 200 240 |
33.3 55.6 66.7 |
87 80 72 |
65 76 74 |
2900 | 75 | 4.5 | 702 |
| 150-250(I)A |
112 187 224 |
31.1 51.9 62.2 |
76 70 63 |
64 75 73 |
2900 | 55 | 4.5 | 561 |
| 150-250(I)B |
104 173 208 |
28.9 48.1 57.8 |
65 60 54 |
63 74 72 |
2900 | 45 | 4.5 | 460 |
| 150-315(I) |
120 200 240 |
33.3 55.6 66.7 |
133 125 120 |
58 73 75 |
2900 | 110 | 4.5 | 980 |
| 150-315(I)A |
112 187 224 |
31.1 51.9 62.2 |
116 110 105 |
57 72 74 |
2900 | 90 | 4.5 | 800 |
| 150-315(I)B |
104 173 208 |
28.9 48.1 57.8 |
100 95 91 |
55 70 72 |
2900 | 75 | 4.5 | 724 |
| 200-200 |
140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15 | 3.0 | 265 |
| 200-200A |
125 179 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 | 11 | 3.0 | 244 |
| 200-250 |
140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 | 3.0 | 305 |
| 200-250A |
129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15 | 3.0 | 267 |
| 200-250B |
117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
76 | 1450 | 11 | 3.0 | 246 |
| 200-315 |
140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 78 |
1450 | 30 | 3.5 | 417 |
| 200-315A |
131 189 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 | 22 | 3.5 | 342 |
| 200-315B |
121 173 225 |
33.6 48.1 62.5 |
25 24 21 |
76 | 1450 | 18.5 | 3.5 | 322 |
| 200-400 |
140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45 | 3.5 | 498 |
| 200-400A |
131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37 | 3.5 | 462 |
| 200-400B |
122 174 226.5 |
33.9 48.5 62.9 |
40 38 33 |
73 | 1450 | 30 | 3.5 | 443 |
| 200-400C |
112 160 208 |
31.3 44.4 57.8 |
34 32 28 |
71 | 1450 | 22 | 3.5 | 373 |
| 200-200(I) |
280 400 520 |
77.8 111.1 144 |
13.4 12.5 10.5 |
70 80 79 |
1450 | 22 | 4.0 | 382 |
| 200-200(I)A |
250 358 465 |
69.4 90.4 129.2 |
10.7 10 8.5 |
68 78 77 |
1450 | 18.5 | 4.0 | 346 |
| 200-250(I) |
280 400 520 |
77.8 111.1 144 |
22.2 20 14 |
75 80 72 |
1450 | 30 | 4.0 | 475 |
| 200-250(I)A |
250 358 465 |
69.4 99.4 129.2 |
18 14 11.2 |
73 78 70 |
1450 | 20 | 4.0 | 405 |
| 200-250(I)B |
226 322 419 |
62.8 89.4 116.4 |
14.4 13 7.3 |
70 75 67 |
1450 | 18.5 | 4.0 | 387 |
| 200-315(I) |
280 400 520 |
77.8 111.4 144 |
36 32 26 |
73 80 75 |
1450 | 55 | 4.0 | 675 |
| 型 號 | 流量 |
揚程 (m) |
效率 (%) |
轉速 (r/min) |
電機功率 (kw) |
汔蝕余量 (NPSH)r |
重量 (kg) |
|
| m3/h | L/s | |||||||
| 200-315(I)A |
262 374 486 |
72.8 103.9 135 |
31.5 28 23 |
72 79 74 |
1450 | 45 | 4.0 | 560 |
| 200-315(I)B |
242 346 450 |
67.2 96.1 125 |
27 24 19.5 |
78 | 1450 | 37 | 4.0 | 535 |
| 200-400(I) |
280 400 520 |
77.8 111.4 144 |
54.5 50 39 |
75 81 77 |
1450 | 75 | 4.0 | 830 |
| 200-400(I)A |
262 374 486 |
72.8 103.9 135 |
48 44 34 |
80 | 1450 | 75 | 4.0 | 830 |
| 200-400(I)B |
242 346 450 |
67.2 96.1 125 |
41.4 38 29.6 |
78 | 1450 | 55 | 5.0 | 685 |
| 200-400(I)C |
224 320 416 |
62.2 88.9 115.6 |
34.9 32 25 |
76 | 1450 | 45 | 5.0 | 580 |
| 250-250 |
350 550 650 |
97.2 152.8 180.5 |
22 20 16 |
78 82 81 |
1450 | 45 | 5.0 | 620 |
| 250-250A |
300 500 600 |
18.3 139 166.7 |
18.3 17 14 |
76 80 80 |
1450 | 37 | 5.0 | 550 |
| 250-235 |
300 500 600 |
83.3 139 166.7 |
14 12.5 11 |
73 78 70 |
1480 | 22 | 4.5 | 410 |
| 250-300 |
300 500 600 |
83.3 139 166.7 |
22 20 16 |
78 | 1480 | 37 | 4.5 | 550 |
| 250-315 |
350 550 650 |
97.2 152.8 180.5 |
34 32 28 |
76 80 79 |
1450 | 75 | 5.5 | 890 |
| 250-315A |
300 500 600 |
83.3 139 166.7 |
29.5 28 24 |
74 78 77 |
1450 | 55 | 5.5 | 690 |
| 250-315B |
260 450 520 |
72.2 125 144.4 |
25 24 20 |
70 74 72 |
1450 | 45 | 5.5 | 620 |
| 250-400 |
300 500 600 |
83.3 139 166.7 |
54.5 50 39 |
72 | 1480 | 90 | 4.5 | 1530 |
| 300-235 |
540 720 900 |
150 200 250 |
20.5 18 15.0 |
77 81 74 |
1450 | 55 | 5.0 | 1075 |
| 300-235A |
450 600 720 |
125 |
17.2 15 12.5 |
74 79 77 |
1450 | 45 | 5.0 | 970 |
| 300-235B |
420 540 650 |
116.7 150 181 |
14.3 12.8 10.5 |
73 78 70 |
1450 | 37 | 5.0 | 925 |
| 300-250 |
540 720 900 |
150 200 250 |
22.5 20 17 |
80 83 84 |
1450 | 55 | 6.0 | 1085 |
| 300-250A |
450 600 720 |
136 166 200 |
19.5 17 14 |
81 | 1450 | 45 | 6.0 | 980 |
| 300-300 |
540 720 900 |
150 200 250 |
32 28 23 |
82 | 1480 | 75 | 5.0 | 1230 |
| 300-300A |
450 600 720 |
125 166 200 |
27.5 24 20 |
80 | 1480 | 75 | 5.0 | 1095 |
| 300-300B |
420 |
116.7 150 181 |
24 21 17 |
78 | 1480 | 55 | 5.0 | 980 |
| 300-315 |
540 720 900 |
150 200 250 |
35 32 26 |
84 | 1480 | 90 | 4.5 | 1350 |
| 300-315A |
460 650 800 |
127.8 180 222 |
31.5 28 23.5 |
80 | 1480 | 75 | 4.5 | 1240 |
| 300-315B |
420 580 700 |
116.7 161 194 |
27 24 20.0 |
78 | 1480 | 55 | 4.5 | 1100 |
| 300-380 |
480 720 900 |
133.3 200 250 |
48 44 34 |
84 | 970 | 132.0 | 5.0 | 1900 |
| 300-380A |
444 666 833 |
123.3 185 231.4 |
41.4 38 30 |
80 | 970 | 110.0 | 5.0 | 1700 |
| 300-380B |
400 614 764 |
113.6 170.6 213.1 |
35 32 35 |
78 | 970 | 90.0 | 5.0 | 1530 |
| 300-390 |
540 720 900 |
150 200 250 |
20.5 18 15.5 |
78 81 76 |
980 | 55 | 5.0 | 1300 |
| 300-390A |
450 600 720 |
126 167 200 |
17.2 15 12.8 |
77 79 75 |
980 | 45 | 5.0 | 1220 |
| 300-390B |
400 540 650 |
111 150 180 |
14 12.5 11.5 |
74 77 76 |
980 | 37 | 5.0 | 1100 |
| 300-400 |
450 600 720 |
125 166 200 |
55 50 42.5 |
78 | 1480 | 110 | 5.0 | 1500 |
| 300-480 |
540 720 900 |
150 200 250 |
31 28 24 |
79 81 80 |
980 | 75 | 5.0 | 1500 |
| 300-480A |
450 600 720 |
126 166 200 |
27.4 24 20.0 |
78 80 79 |
980 | 75 | 5.0 | 1280 |
| 300-480B |
400 540 650 |
111 150 180 |
24 21 17 |
79 | 980 | 55 | 5.0 | 1180 |
| 350-235 |
600 800 960 |
167 222 267 |
14 12.5 10.5 |
80 83 82 |
1480 | 37 | 4.5 | 1050 |
| 350-300 |
600 800 960 |
167 222 267 |
22.5 20 17.5 |
79 82 71 |
1480 | 55 | 4.5 | 1230 |
| 350-315 |
600 |
167 222 267 |
35.5 32 28.5 |
84 | 1480 | 90 | 4.5 | 1650 |
| 350-400 |
600 800 960 |
167 222 267 |
55 50 45.5 |
83 | 1480 | 160 | 4.5 | 1950 |
| 400-300 |
920 1080 1300 |
228 300 361 |
23 20 16 |
78 | 1480 | 90 | 6.0 | 1570 |
| 400-315 |
820 1080 1300 |
205 300 344 |
36.5 32 27 |
76 | 1480 | 132 | 6.0 | 1880 |
| 500-300 |
1000 1200 1450 |
277.8 333 403 |
23 20 16.0 |
80 | 1480 | 110 | 6.0 | 1800 |
| 500-315 |
1000 1200 1450 |
278 333 403 |
34.5 32 27 |
78 | 1480 | 160 | 6.0 | 2070 |
相關產品
